Installation

Site Servers are an architectural component of the PaperCut solution. Setup is a straightforward process. Like most architecture projects, the time is best spent planning.

1. Planning

Planning is the most critical step of a successful site server deployment. Taking a few moments prior to installation to run through a checklist of items is a wise first step;

  • Arrange a license to include the required number of Site Servers.

  • Consider a signed certificate by a trusted CA for your Application Server

  • Plan to install/update the Application Server to v15.0.

  • Discuss and choose the appropriate Offline Policies for your site.

  • Choose a Site Server location that ensures a reliable connection to the devices and print servers it needs to support.

  • Plan for minor disruption for any existing embedded or hardware devices you will reconfigure to use the Site Server.

  • Review the critical functions the Site Server supports to understand offline behaviour.

2. Apply your license

Your Application Server must be licensed for Site Servers before installing the Site Server software.

3. [optional] Import a trusted signed certificate

Where practical, organizations should consider implementing a signed certificate for SSL communications. This topic is covered in detail in Appendix A of our manual.

4. Installation

Before installing a Site Server you should take some time to ensure the primary server (central application server) is set up and running correctly. If it is not running fine now adding an extra server will only "add an extra variable to the equation" and complicate troubleshooting. Take some time now to verify that the primary server is functioning correctly.

Windows

On a Windows server, install the Site Server software by selecting the Site server installation (advanced) option in the installation wizard. If the PaperCut Primary Server software was previously installed on the server it must be uninstalled prior to installing the Site Server software.

Linux

Please follow the existing Installation on Linux section of the PaperCut manual, with the additional parameter of ––site-server when executing the installer.

Mac

On a Mac server, install the Site Server by downloading the latest Mac DMG disk image and execute the contained installer called PaperCut MF Site Server Install (advanced).pkg

5. Post installation setup

  1. Set a unique name of the Site Server you are configuring.

    Site Server name

    Figure 11.8. Site Server name

  2. Enter the name or IP of the Application Server this Site Server will connect to.

    Application server IP/Hostname

    Figure 11.9. Application server IP/Hostname

  3. Enter the credentials of a user with administrator access to PaperCut on the Primary Server.

    Built-in admin credentials

    Figure 11.10. Built-in admin credentials

  4. The Site Server is now connected to Application Server and will begin the data synchronization process.

    Site Server status

    Figure 11.11. Site Server status

  5. The Site Server requires no additional configuration at the local machine. You can use the Login link under the Application Server image to access the PaperCut admin interface on the Primary Server. In here, you will see a new Sites tab.

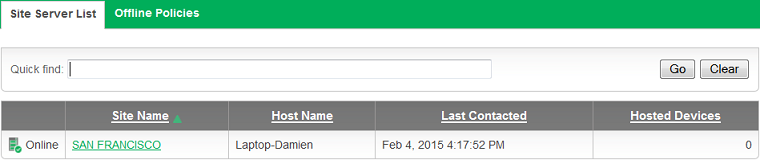

    Site Server list

    Figure 11.12. Site Server list

  6. Click the SitesOffline Policies tab to set the Offline Policies for your installation.

    Tip

    If you have installed the Site Server onto an existing PaperCut Secondary Print Server, the Print Provider will have been automatically configured to work with the new Site Server. Additional Print Providers will need to be upgraded to the same version of the Application Server and configured in the print-provider.conf file to connect to the Site Server address.

MFD configuration

Embedded devices should be configured to use the Site Server as their hosting Server. You may add new devices to the Site Server directly, or migrate existing devices to the Site Server, without losing device history.

Implementations of embedded solutions vary according to manufacturer, however they can be broadly grouped into two categories.

  1. Devices that connect to PaperCut. (Sharp, Ricoh, Kyocera, Lexmark, Samsung, Brother)

    Follow the installation guide for your particular device, taking care to enter the Site Server address where the Application Server address is usually entered.

  2. Devices that PaperCut connects to. (AIP devices, Konica Minolta, Toshiba, Xerox EIP or JBA, VCC).

    Follow the installation guide for your particular device. When configuring a new device, you will be required to choose the server that this device will be hosted on.

    Select the Site Server

    Figure 11.13. Select the Site Server

    The device record will also present an option for administrators to change this Hosted on value at any time in the future. This allows for a device to be moved from one server to another.

You can view which server is currently hosting each of your devices in the Device List page of the admin interface.

Release Station configuration

The Standard Release stations and mobile release apps are both supported by the Site Server to allow held jobs to be released in both online and offline operation.

  • The Standard Release Station is connected to the Site Server by editing the release station's connection.properties file and changing the server-ip setting to the Site Server address.

  • The Site Server version of the mobile release app is accessed by using the Site server address in the URL, e.g. http://[site-server]:9191/mr

Testing your installation

The Sites tab of the admin interface shows at a glance the status of all Site Servers. Whilst the Site Server is connected, your PaperCut installation should be operating as per normal.

To verify that your Site Server is providing resilience - you may take the site offline. This can be achieved by simulating network failure (pulling the plug), or more simply by disabling the site in the Sites tab.

  1. Select the site in the Sites tab

  2. Choose Disable connection (force offline) in the Site Connection section.

  3. Click Apply

The site can be validated as being in offline mode via the Site Server URL (http://[site server]:9191/admin). Printing and copying should continue according to the offline policies defined in the installation section. Validating the application of the policies via copy and print transactions will ensure your settings have been applied correctly.

To complete the test, return the Site to online by selecting Enable connection in the Site record. Validate your transactions have been uploaded to the Application Server by searching either the User, Device, Printer or Job log.

Tip

Jobs performed offline are marked as such in the print log. You can see which jobs are offline by inspecting the job details in the job log. In addition, when creating job log reports, you may now filter by offline jobs, to report only the jobs performed offline in a specified period.

Important note about future upgrades

Version upgrades to the Application Server will result in the Site Servers supporting their local site in offline mode until they are also upgraded. Therefore you should also plan to upgrade the Site Servers as part of your upgrade procedure.
