Quick install: Linux (CUPS and/or Samba)

Step 4: Run the Configuration Wizard

After installation, you are prompted to open a web browser at :

http://[server-name]:9191/admin

The configuration stages are explained below:

1. Administrative password



   1. Complete the following fields:

   • Password—enter the master password for the main in-built admin account. This password is independent of the operating system or domain passwords. The password must be at least six characters.

     Tip:

     Keep this password secure. If you forget your password, you can reset it. For more information, see Resetting the Admin Password.

   • Verify password—re-enter the password.
   • Location—select the system's physical location and language.

   2. Click Next.

2. Organization type

   The Organization type screen is displayed.



   This selection determines which system defaults are used. For example, in a Professional (Client Billing) organization, where it is useful to charge-back printing to customers, an advanced client popup is provided with additional features useful for dealing with large numbers of client (shared) accounts. You can change these default settings chosen for an organization type after installation.

   1. Select your organization type.

   2. Click Next.

3. Default cost for printing

   The Default costs for printing screen is displayed.



   Important:

   For an education implementation, where users are charged for their printing, leave these values as zero during the implementation stage, otherwise, students will not be able to print as they cannot yet add credit to their account.

   If required, you can change this setting after installation.

   1. Complete the following fields:
   • Color (cost per page)—enter the default cost per page for color printing on all printers.
   • Grayscale (cost per page)—enter the default cost per page for grayscale printing on all printers.

   2. Click Next.

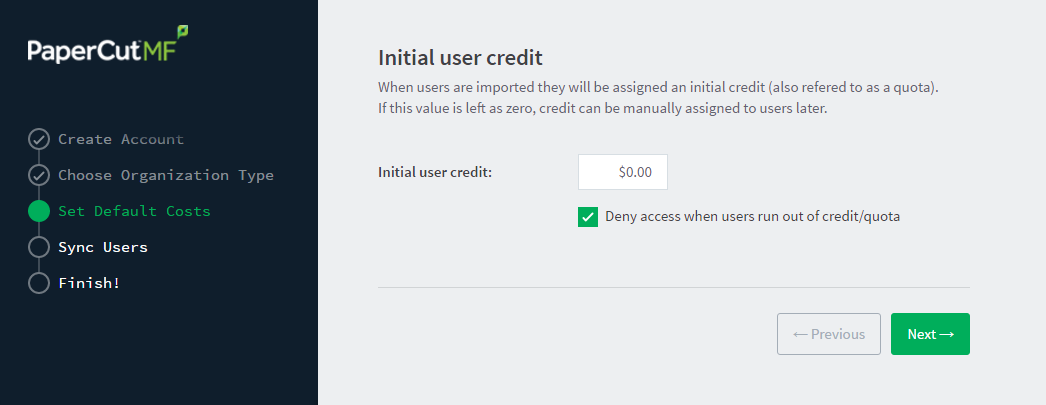

4. Initial user credit (Education organization type only)

   If you selected Education as the organization type, the Initial user credit screen is displayed.



   If you selected Small/Medium Enterprise (SME) or Corporate) or Professional (Client Billing) as the organization type, go to step 5.

   1. Complete the following fields:

      • Initial user credit—enter the amount of credit each/quota each user will receive when the system is first enabled. You can change these settings after setup.

      • Deny access when users run out of credit/quota—select this check box to prevent users from printing when they run out of credit/quota.

        Tip:

        If you are evaluating PaperCut MF it might be appropriate not to disable printing when a users funds run out. This way you can be assured that user printing is not disrupted during the evaluation.

   2. Click Next.

5. User/group synchronization

   The User/group synchronization screen is displayed.

   PaperCut MF extracts user information out of the system or domain.

   Tip:

   During evaluation, most sites import all users from the system/domain into PaperCut MF.



   1. In User source, select the source of user account data:

      • Unix Standard (PAM, Local NetInfo, etc.)—if the user accounts are set up and defined on the local system as standard Unix accounts or mapped into the system from a central directory service such as LDAPThe Lightweight Directory Access Protocol (LDAP) is a directory service protocol that runs on a layer above the TCP/IP stack. It provides a mechanism used to connect to, search, and modify Internet directories. The LDAP directory service is based on a client-server model. via nsswitch.conf and PAM. Most large established networks use this option.
      • LDAP (Open Directory)—for large networks with existing Open Directory domains. This includes networks running Open LDAP and Windows domains running Active Directory. PaperCut MF does it's best to auto-discover LDAP settings, but some knowledge of LDAP and/or Open Directory is required.

      • Samba—if the central user directory is a Windows Domain. The Samba option is available only if Samba is installed on the system. The Samba option is appropriate on medium to small networks currently operating in a Windows Domain environment.

        The Samba option requires additional information such as the name of a domain server, and login credentials for an Administrator level account. This information is requested on the subsequent wizard screen. Take care to ensure this information is complete and correct.

   2. Select one of the following options:

      • Import all users—import all domain user accounts.
      • Import users from selected groups—import a subset of users from a given group. This is useful when only a subset of users will use the printers.
   3. Use the Test Settings to test and confirm your settings before continuing.

   4. Click Next.

   For more information on user/group synchronization on Linux, see PaperCut MF on Linux.

6. User Client options (Professional (Client Billing) organization type only)

   If you selected Professional (Client Billing), as the organization type, the User client options screen is displayed.



   If you selected Education or Small/Medium Enterprise (SME) or Corporate, go to step 7.

   The User client allows users to allocate print jobs to client (shared) accounts. The process works by:

   • Pausing all jobs that enter the print queues.

   • Displaying a popup on the user's workstation asking them to allocate the print job to an account. This is done by selecting the account from a list.

   • After the user has responded to the popup, the job is released to the printer.

   For more information about the account selection process and shared accounts, see Shared accounts.

   The account selection popup option is enabled at the user level. Once the option is enabled, the user must run the client software. If the client software is not running, the popup cannot display, and the job remains paused in the print queueA print queue displays information about documents that are waiting to be printed, such as the printing status, document owner, and number of pages to print. You can use the print queue to view, pause, resume, restart, and cancel print jobs.. This option is considered high impact. You are presented with two strategies that allow you to choose the implementation approach that best suits your needs.

   1. Select the account implementation strategy:

      • Minimal impact (Initial single user testing)—the account popup is enabled only for a single user for testing purposes. You need to nominate the testing account; this can be an existing system/domain account used for testing purposes or your own user account. The username should be in the format used to log in to the domain/system (usually the short form).

        The minimal impact strategy allows you to test the popup with the nominated test system/domain user account, after which you can enable thepopup for other users as appropriate.

      • Immediate implementation (Enable for all users)—enables the account selection popup for all users. Once the client has been deployed, the system is operational. If this option is selected, install the client software on user desktops immediately to prevent disruption of user printing services.

        If in doubt, select the minimal impact strategy. This ensures the impact is isolated to only the nominated test account.

   2. Click Next.

7. Confirm setup options

   The Confirm setup options screen is displayed.



   1. Check the settings you have entered. If you want to change anything, you can return to any of the configuration screens to alter the options.

   2. Click Confirm.

   The Initial user import screen is displayed.

   3. Click Close.

8. Setup complete

   After completing the configuration wizard you are presented with a user synchronization status screen, showing the progress and results of the setup.



   1. Click Login to access the Admin web interface and begin familiarizing yourself with the options and features available.
